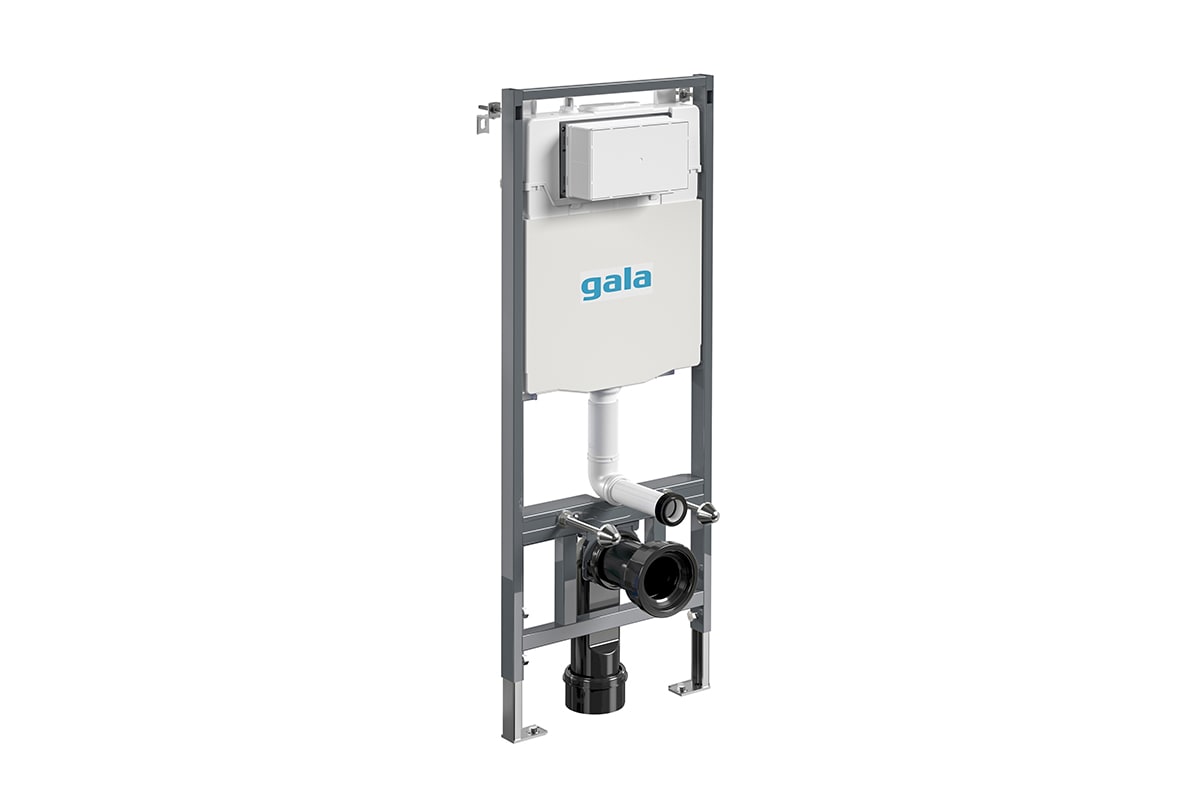

Systems for WCs STRIDE G5548600 Gala

STRIDE

Art. Nº: G5548600

WC Half Frame Stride. Installation system for wall-hung toilet on brick wall. 6/3 litres, 4,5/3 litres and 4/2 litres flush.

475 x 80 x 1140 mm
(length, width, height)
product factsheet (pdf) Medidas view all dimensions
Where to buy

TECHNICAL SPECIFICATIONS

WC Full Frame Stride. Installation system for wall-hung WC in brick wall. 6/3L, 4,5/3L and 4/2L flush. Installation accessories included. Minimum depth: 107/120 mm (DN90/DN100). Waste elbow Ø90 or 110 mm. Only compatible with ST flush plates.

Elbow connection: DN100 (110 mm), DN90 (90 mm)

Flushing type: Dual flush 2/4 litres, Dual flush 3/4.5 litres, Dual flush 3/6 litres

Height (INCH): 44 7/8"

Length (INCH): 18 11/16"

Minimum fixation depth (mm): 107

Net weight (kg): 13.4

Operating plate position: Frontal

Suitable for: Wall-hung toilet

Water inlet position: Top

Width (INCH): 3 1/8"
