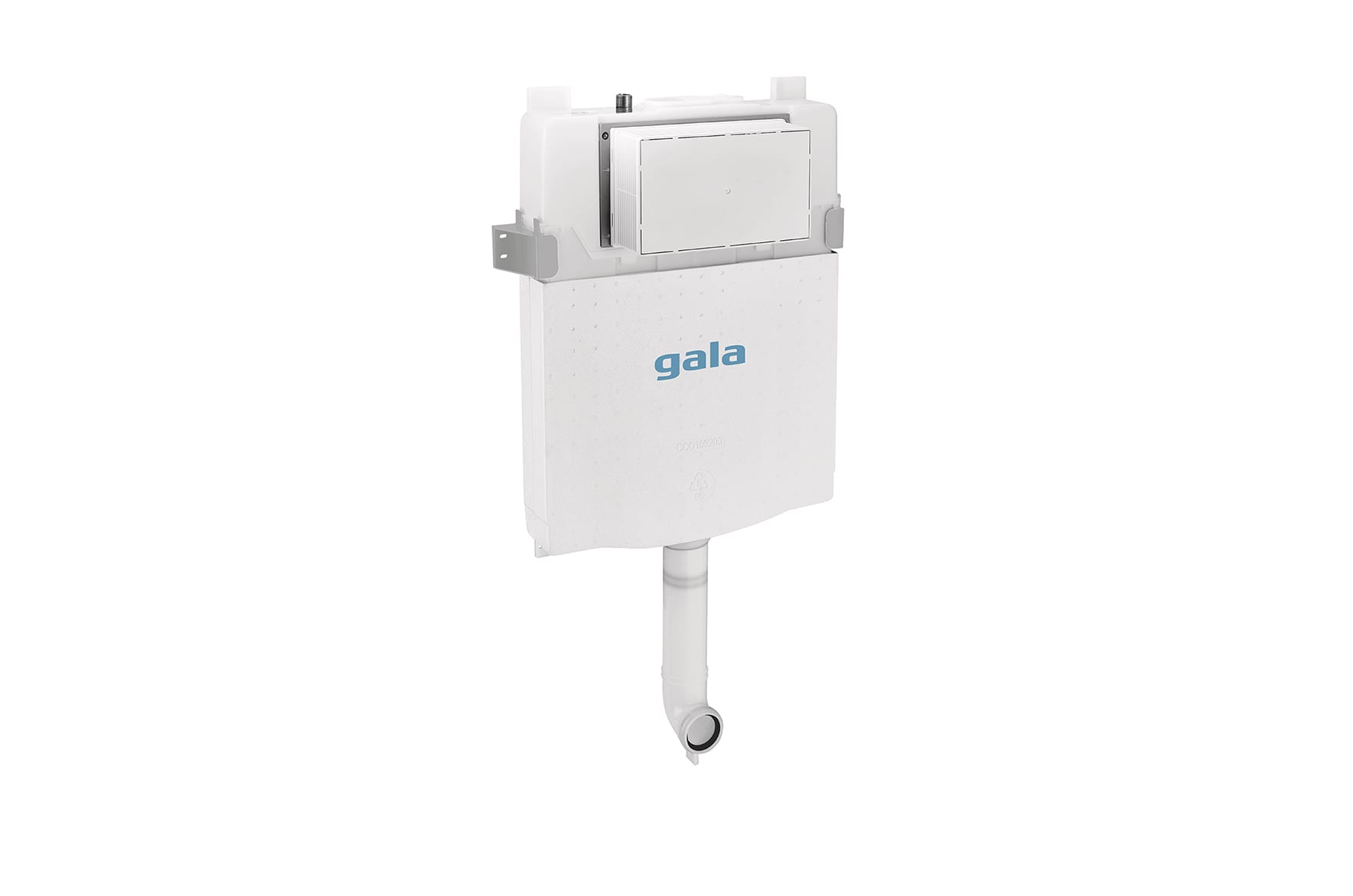

Systems for WCs EON G5548200 Gala

EON

Art. Nº: G5548200

WC Tank Eon Compact. Installation system for non-suspended toilet on brick and light walls. 6/3 litres, 4,5/3 litres and 4/2 litres flush.

460 x 80 x 572 mm
(length, width, height)

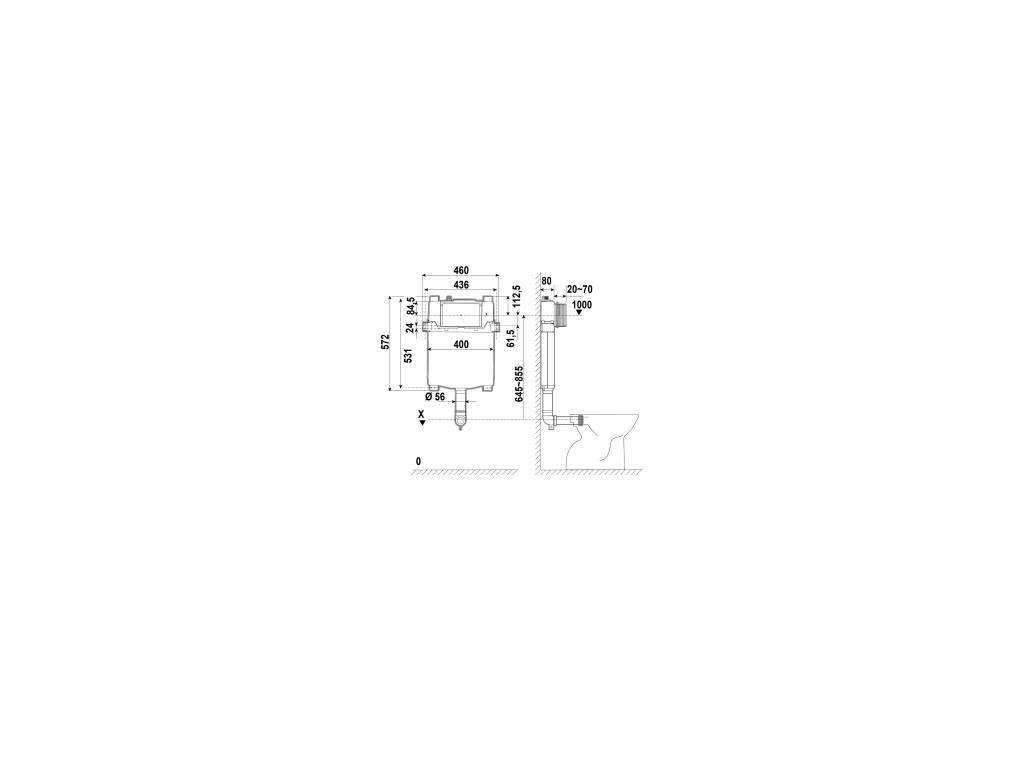

product factsheet (pdf) Medidas view all dimensions
Where to buy
...

TECHNICAL SPECIFICATIONS

WC Tank Eon Compact. Installation system for non-suspended toilet on brick and light walls. 6/3 litres, 4,5/3 litres and 4/2 litres flush. Minimum depth 80/90 mm. Only compatible with Eon push-buttons.

Flushing type: Dual flush 2/4 litres, Dual flush 3/4.5 litres, Dual flush 3/6 litres

Height (INCH): 22 1/2"

Length (INCH): 18 1/8"

Minimum fixation depth (mm): 80

Net weight (kg): 4

Operating plate position: Frontal

Suitable for: Floorstanding toilet, Wall-hung toilet

Water inlet position: Top

Width (INCH): 3 1/8"
