Systems for WCs EON G5548000 Gala

EON

Art. Nº: G5548000

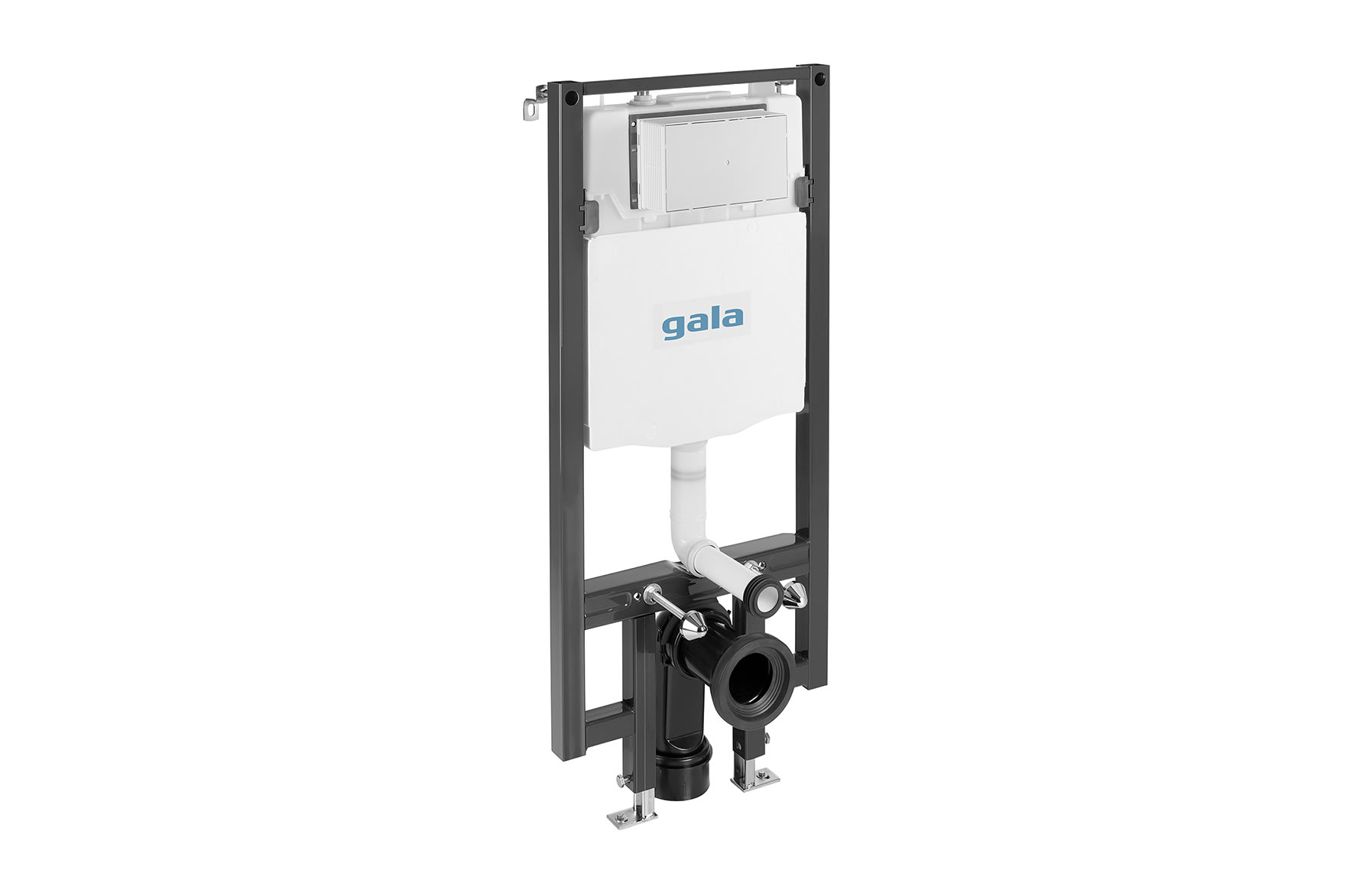

WC Full Frame Eon Compact. Installation system for wall mounted toilet on light wall. 6/3 litres, 4,5/3 litres and 4/2 litres flush.

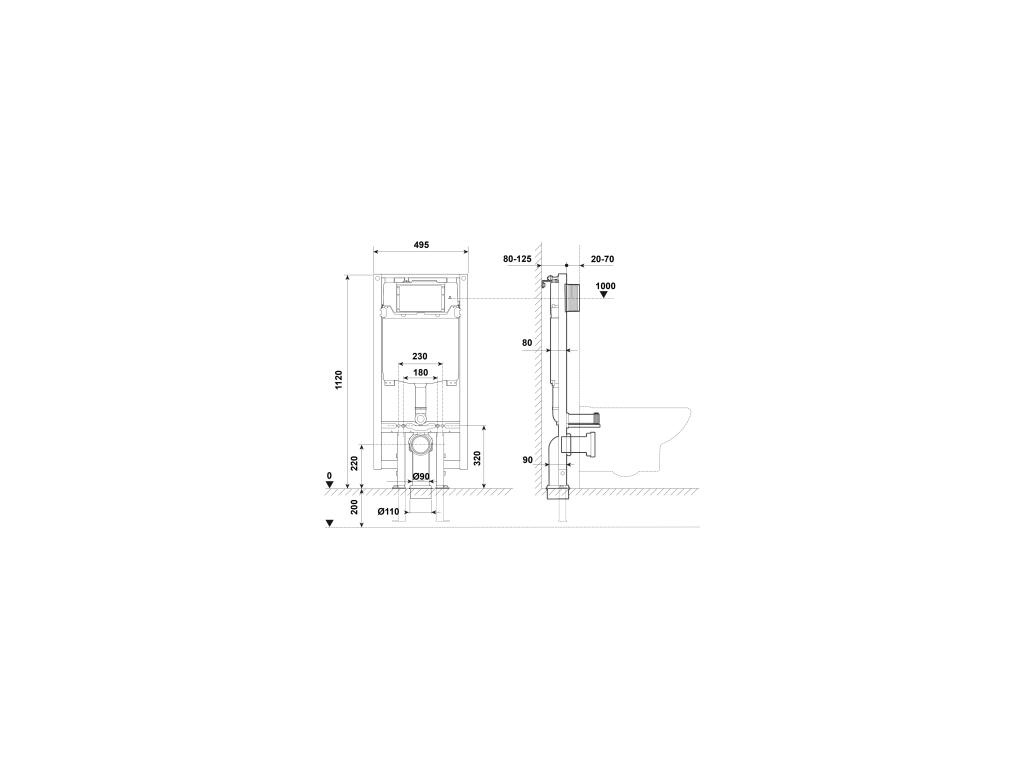

495 x 80 x 1120 mm
(length, width, height)
product factsheet (pdf) Medidas view all dimensions
Where to buy
...

TECHNICAL SPECIFICATIONS

WC Full Frame Eon Compact. Installation system for wall mounted toilet on light wall. 6/3 litres, 4,5/3 litres and 4/2 litres flush. Minimum installation depth 90/110 mm (DN90/DN100). Only compatible with Eon push-buttons.

Elbow connection: DN100 (110 mm), DN90 (90 mm)

Flushing type: Dual flush 2/4 litres, Dual flush 3/4.5 litres, Dual flush 3/6 litres

Height (INCH): 44 1/8"

Length (INCH): 19 1/2"

Minimum fixation depth (mm): 90

Net weight (kg): 14

Operating plate position: Frontal

Suitable for: Wall-hung toilet

Water inlet position: Top

Width (INCH): 3 1/8"
