ARIS

Art. Nº: G4727201

Rimless Wall hung WC pan horizontal outlet.

...

TECHNICAL SPECIFICATIONS

Rimless Wall hung WC 67x35,5 cm P-trap. Can be installed with wall support.

Fixing kit: Not included

Height (INCH): 15 3/4"

Installation type: Wall-hung

Length (INCH): 21 1/4"

Net weight (kg): 22

Outlet type: Horizontal

Rim type: Rimless

Shape: Soft

Width (INCH): 15 9/16"

2D and 3D files
Technical drawings

2D and 3D files

Download the CAD (2D, 3D) files of this product in different formats.

2D

Top view

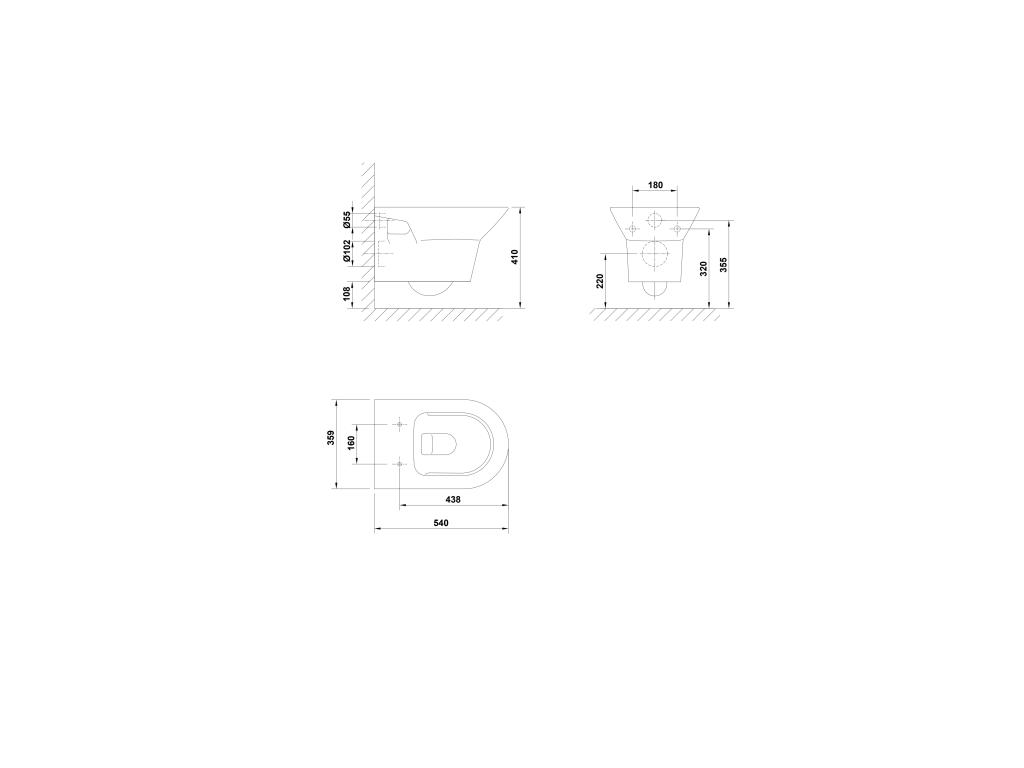

Technical drawings

Technical Drawings (67.1 KB)
