NOBLE

Art. Nº: G1254001

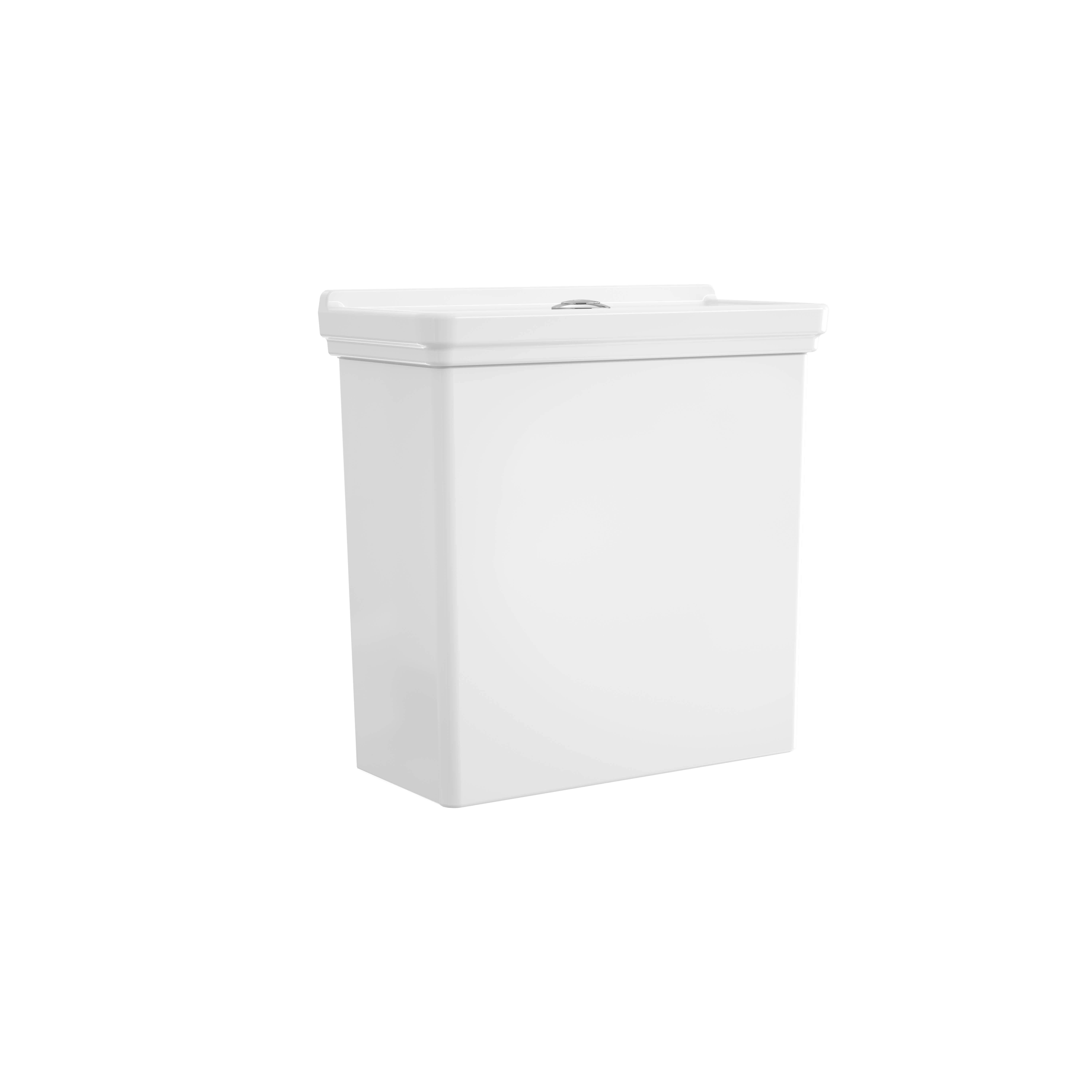

Low cistern with dual push-button mechanism 6/3 litres

...

TECHNICAL SPECIFICATIONS

Low cistern with lid, dual push-button mechanism 6/3 litres. Left bottom inlet.

Flushing type: Dual flush 3/6 litres

Height (INCH): 17 5/16"

Length (INCH): 7 7/8"

Net weight (kg): 14.71

Water inlet position: Bottom left

Width (INCH): 15 3/4"

2D and 3D files
Technical drawings

2D and 3D files

Download the CAD (2D, 3D) files of this product in different formats.

2D

Side view

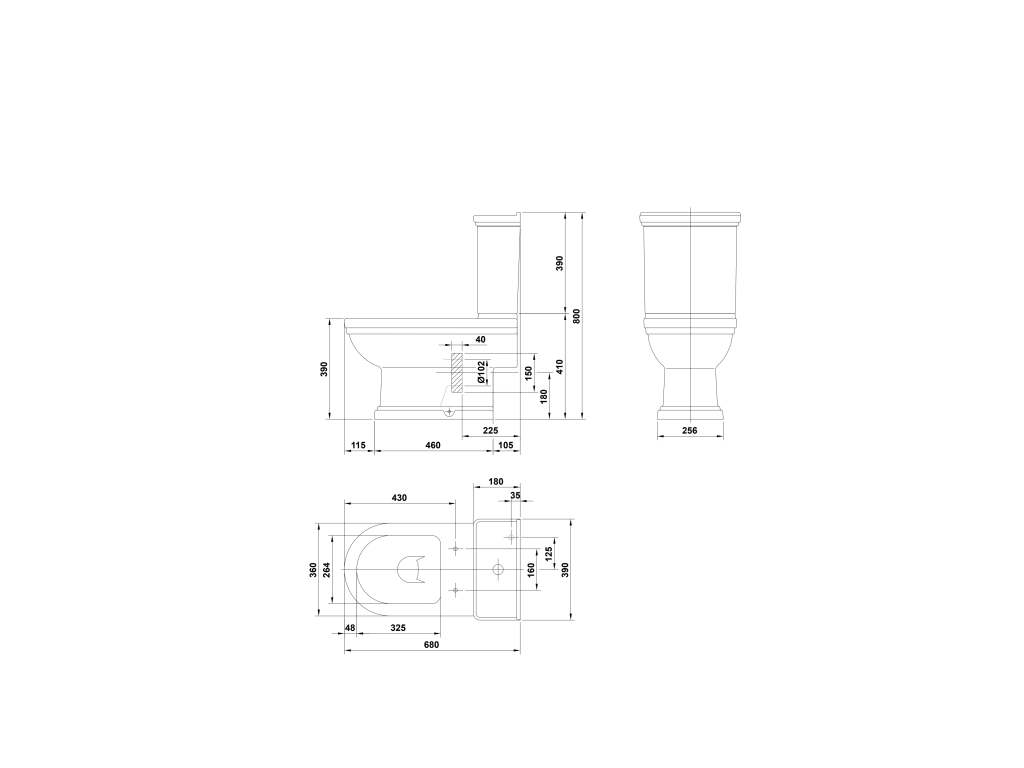

Technical drawings

Technical Drawings (89.8 KB)
