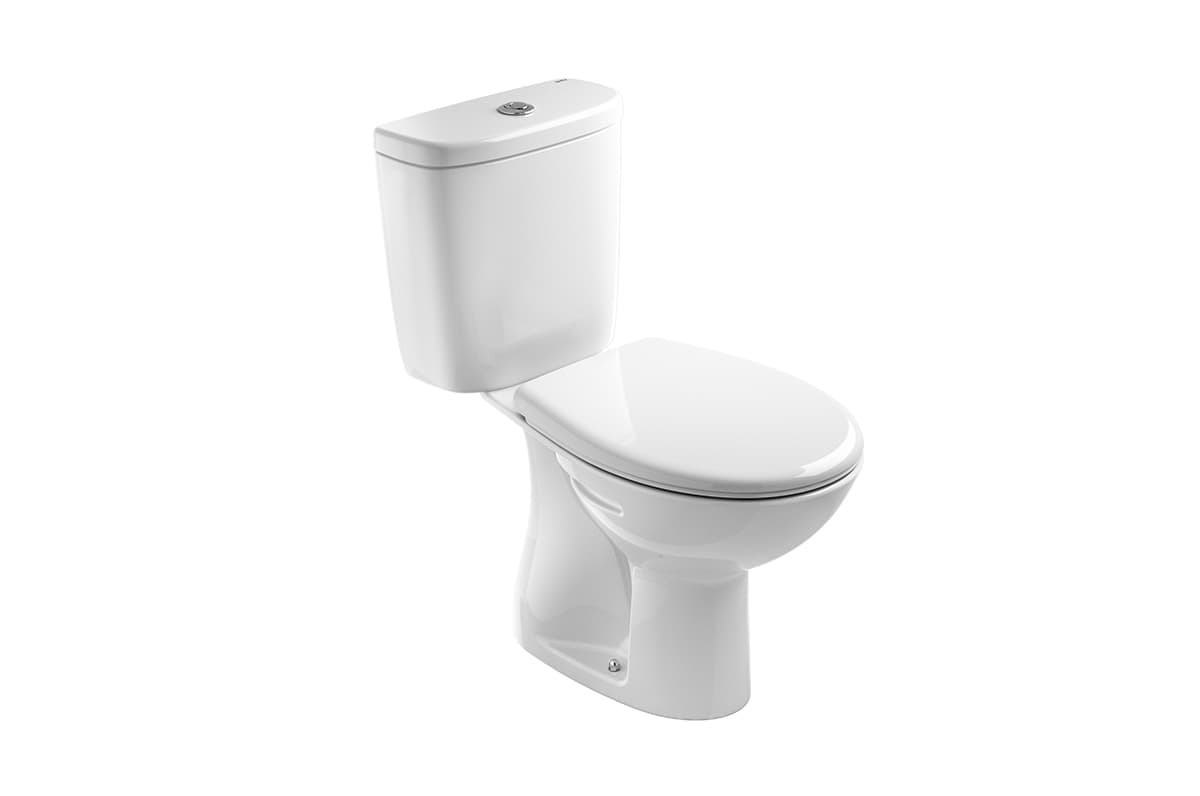

Close-coupled WC suite,S-trap (including WC with fixing kit, bottom left inlet cistern, and fixed PP seat)

REFERENCE INCLUDED IN THE PACK: G5137401 / G5715001 / G5754001

DIMENSIONS W/D/H (length, width, height)

670 x 755 mm

SoftClose system

TECHNICAL SPECIFICATIONS

Close-coupled WC pack consisting of WC S-trap and fixing kit, bottom left inlet cistern, double push 6/3 litres mechanism and fixed PP seat.

Flushing system:

Washdown

Installation type:

Floorstanding

Outlet type:

Vertical

Shape:

Soft

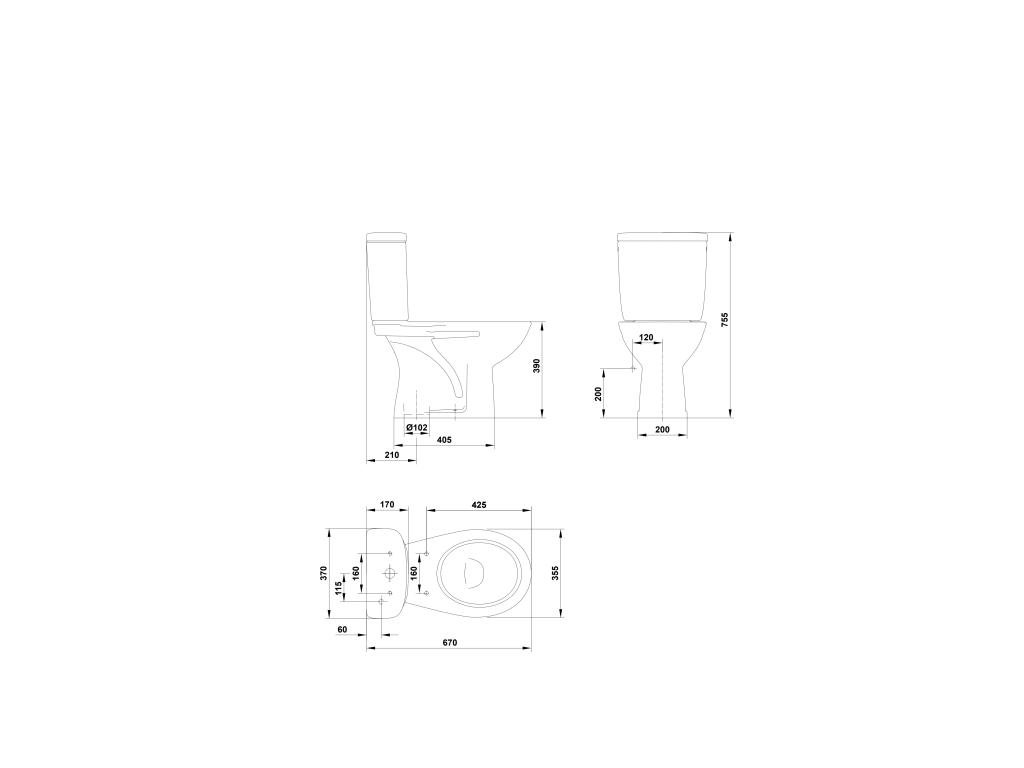

Download the CAD (2D, 3D) files of this product in different formats.

2D

Top view

PRODUCTS INCLUDED

LIZZ

Polypropylene fixed seat

Art. Nº: G51374..

Polypropylene fixed seat

Bottom fixing

Hinges material

Plastic

Net weight (kg)

1

Seat Type

Injected

Seat and Cover material

Polypropylene

Shape

Round

LIZZ

Close-coupled WC suite S-trap with bolting kit.

Art. Nº: G57150..

670 x 390 mm

WC 67x35,5 cm S-trap with bolting kit.

Fixing kit

Included

Installation type

Floorstanding

Net weight (kg)

16.35

Outlet type

Vertical

Rim type

Closed

Shape

Soft

Low cistern pan with lid and dual push-button mechanism 6/3 liters. Bottom left inlet.

Flushing type

Dual flush 3/6 litres

Net weight (kg)

10

Water inlet position

Bottom left
